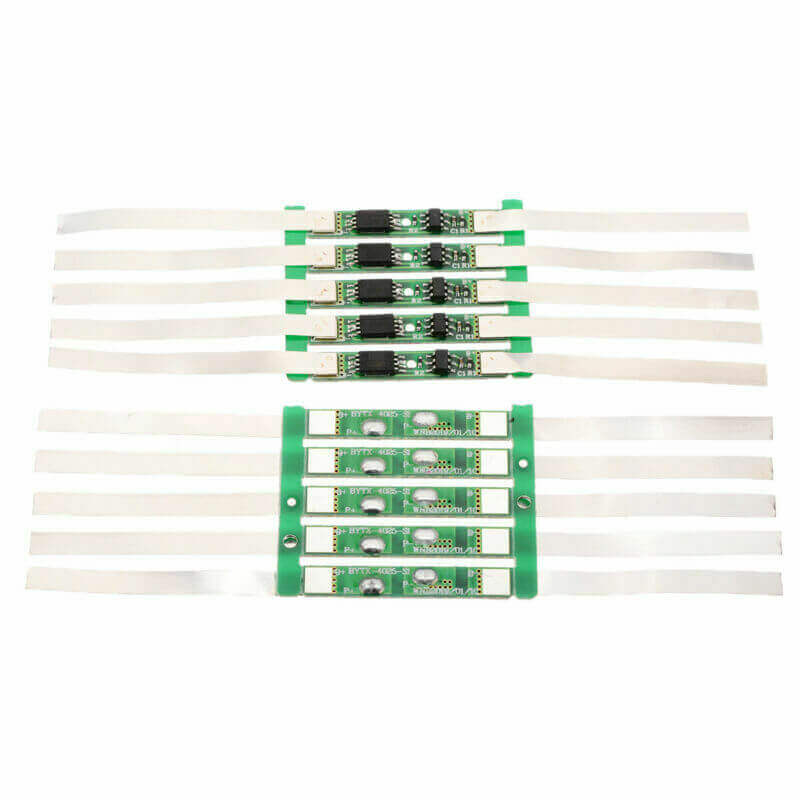

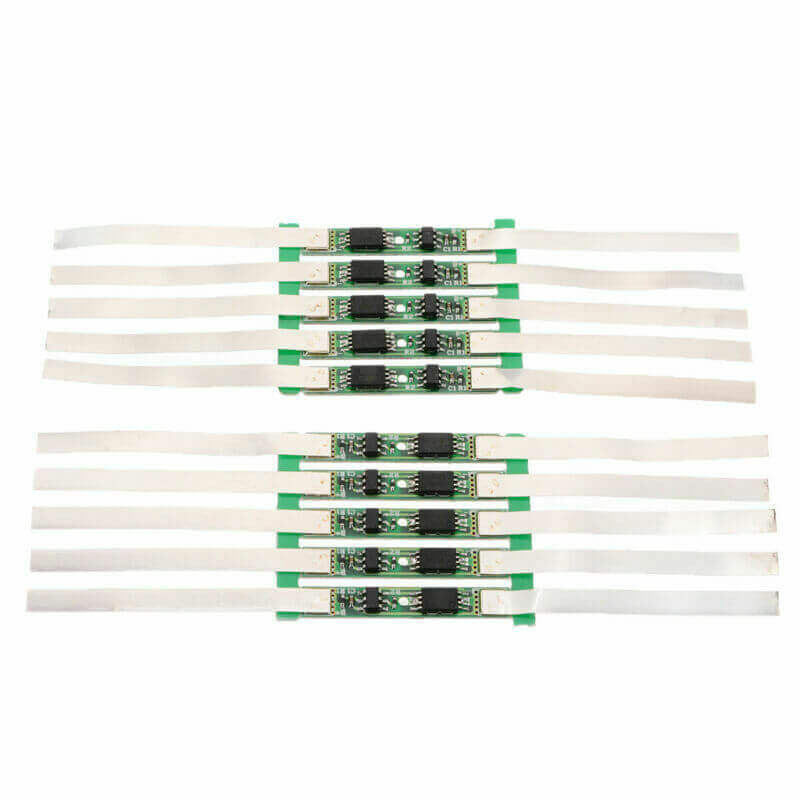

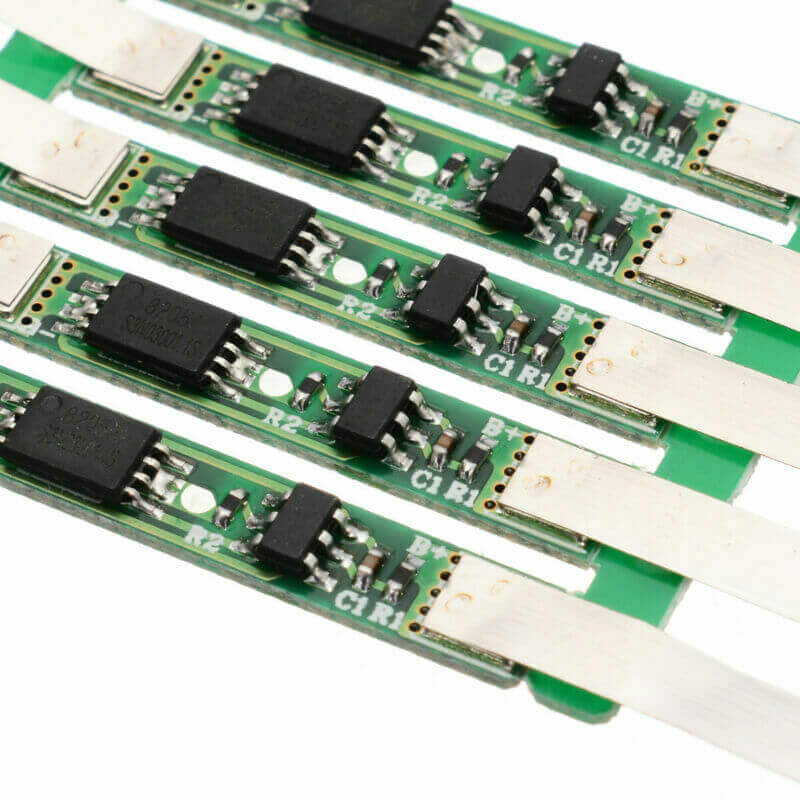

10pcs - Li-Ion BMS Battery Protection Board 1S 3.7V 3A 18650 with Solder Strip
$7.98
Sold By: Unity Plaza
Categories: Hot Promotions, Electronics, Regulators & Converters
10pcs - Li-Ion BMS Battery Protection Board 1S 3.7V 3A 18650 with Solder Strip
Technical Parameters:
Continuous operating current: 3A
Single battery (consumption): ? 6uA
Maximum continuous discharge current: 3A
Overcharge detection voltage: 4.25 V ± 0.025V
Overcharge detection delay time: 150-500 ms
Overcharge recovery voltage: 4.0V ± 0.025V
Over-discharge detection voltage: 2.5.00V ± 0.1V
Over-discharge detection delay time: 50-150ms
Over discharge recovery voltage: 3.0V ± 0.10V
Overcurrent detection voltage: 0.08V
Overcurrent detection current: 3.4A
Overcurrent detection delay time: 5ms-15ms
Recovery Status: Auto Recovery
Protection circuit (MOSPET): 60m
Operating temperature range: -40 ~ +60
The main function:
Overcharge protection, over-discharge protection, short circuit protection, overcurrent protection.
Wiring instructions:
B + connected to battery positive.
B- connected battery negative.
P + input positive battery output
P- negative battery input-output
Package Included:

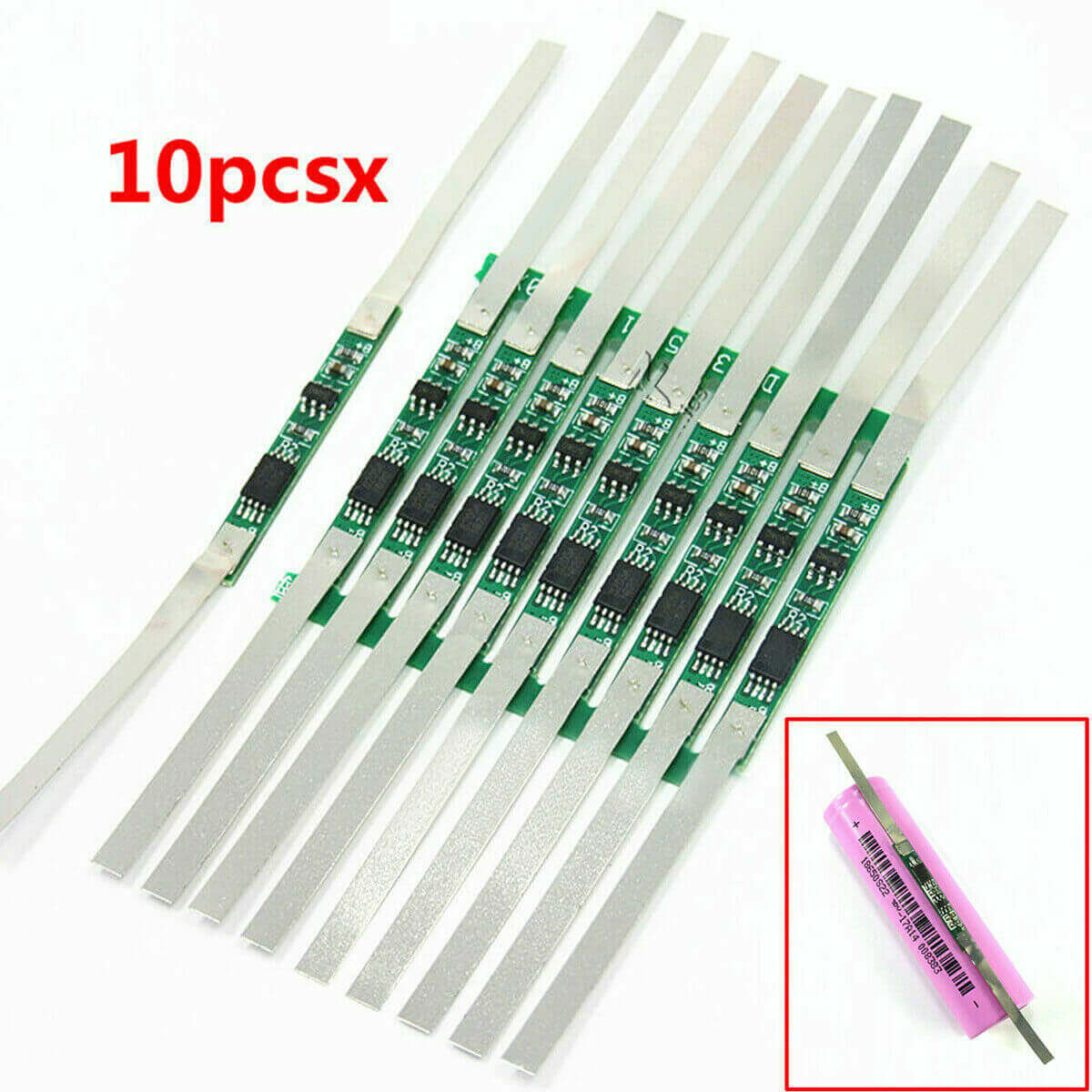

10 x 1S 3.7V 3A Li-Ion BMS with Solder Strip
